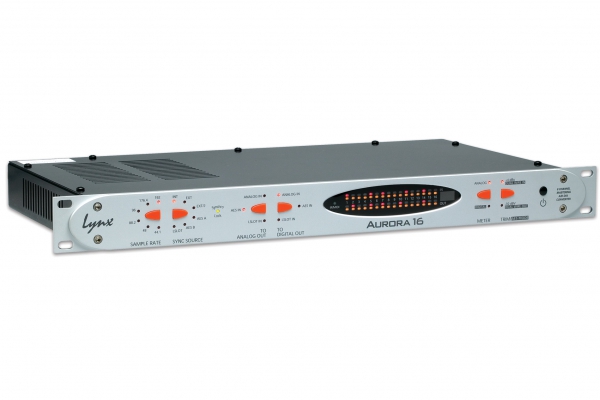

Aurora(n). The next generation interface. Once again setting a new standard.

8, 16, 24, and 32 channel versions - each in a 1U format.

Onboard 32-channel microSD recorder for direct recording and playback.

Upgradable modules available now include a mic pre-amp module a digital connectivity module and an 8 channel A/D & D/A module with more to come.

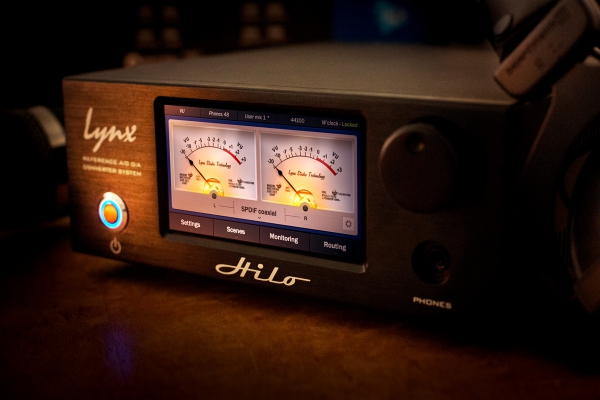

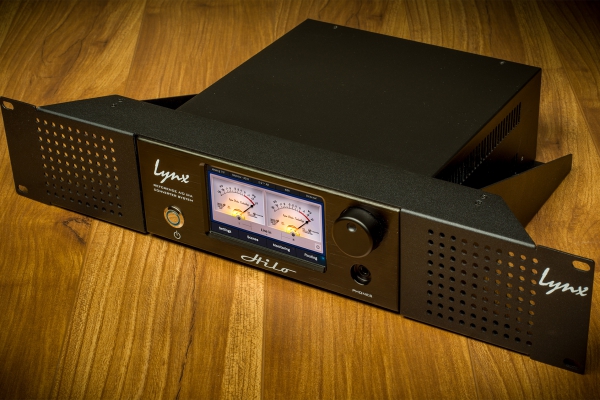

Hilo is our most transparent interface ever.

Pristine, independently coupled 2in, 6out, AD/DA conversion with digital expansion up to 32x32.

Unique touchscreen interface. Forever upgradable through our free firmware updates.

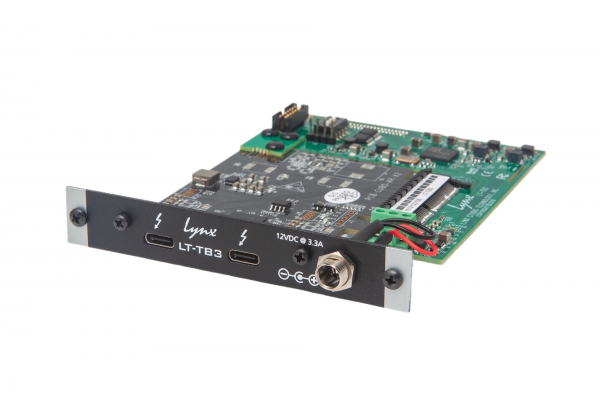

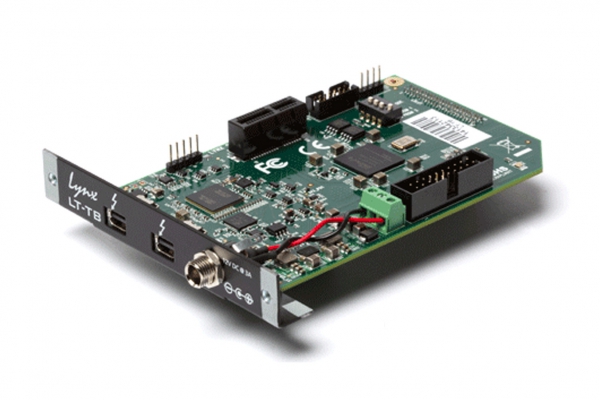

Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards.

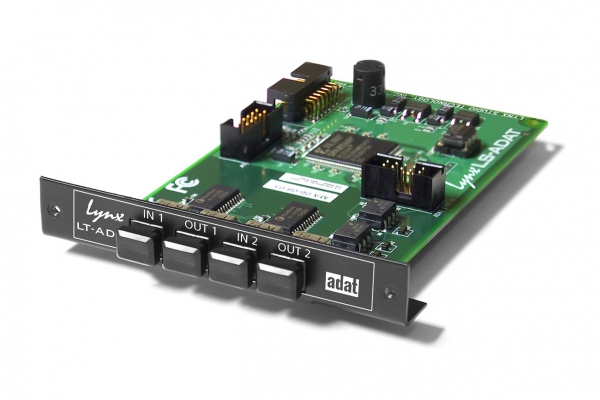

Aurora(n) ADAT Daughter Board for the LM-DIG AES/EBU Digital I/O Module

ADAT daughter board for the LM-DIG AES/EBU digital I/O module

Provides ADAT and S/PIDF connectivity when paired with an LM-DIG in an Aurora(n) Interface*

4 high-quality optical connectors with two inputs and two outputs

Preamp Module for the Aurora(n)

Four-channel microphone/line/HI-Z input module for Aurora(n)

On-board Aurora(n) A/D conversion directly coupled to preamp out for four additional input channels

Transformerless, transparent design

Digital I/O Module for Lynx Aurora(n) Converter

16 input and 16 output channels on two 25-pin female D-subs, Yamaha digital I/O pinout

24-bit AES/EBU (AES3) data format

Balanced, Transformer-coupled, 110 ohm, RF filtered, electrical interface

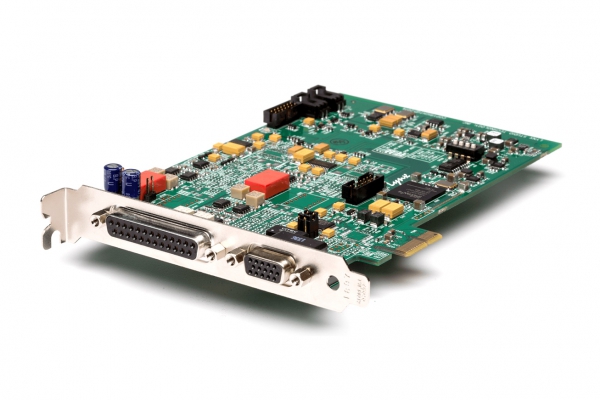

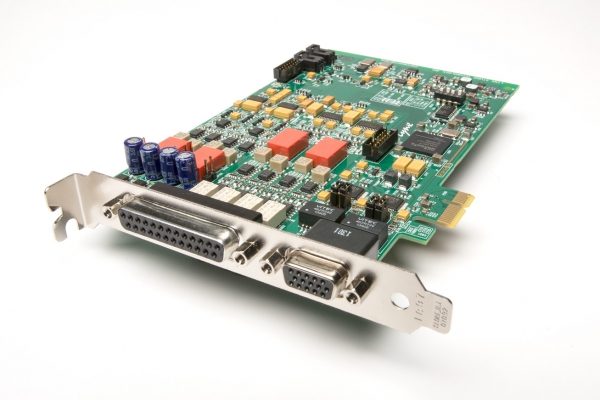

The four analog, four digital PCI express card.

Four channels of A/D and D/A conversion

Four channels of AES3 or S/PDIF I/O

Sample rates of 44.1, 48, 88.2, 96, 176.4 and 192kHz

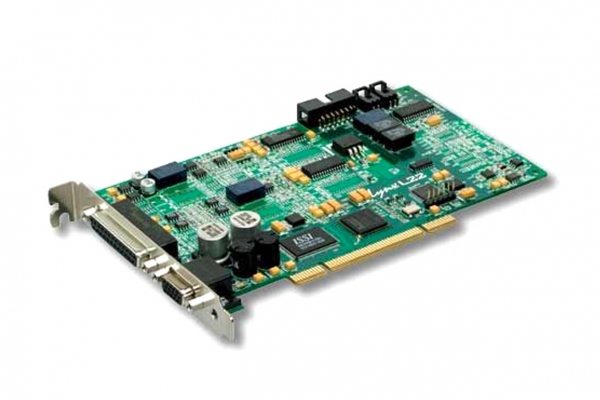

The two analog, two digital PCI express card.

Two channels A/D and D/A conversion

Two channels of AES3 or S/PDIF I/O

Sample rates of 44.1, 48, 88.2, 96, 176.4 and 192kHz

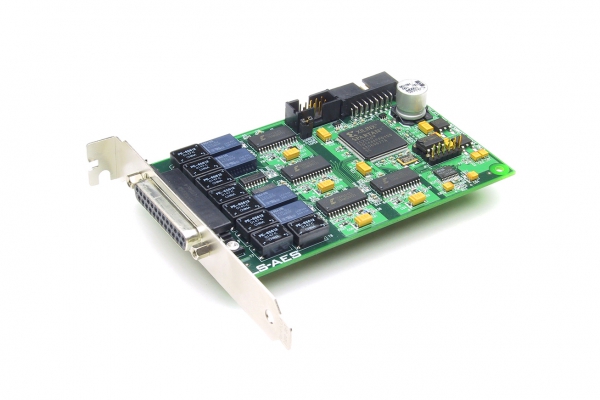

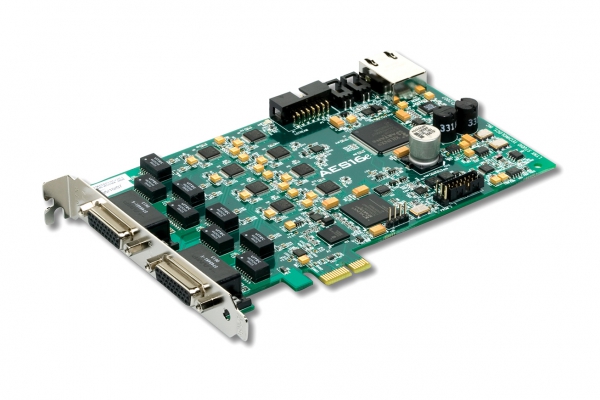

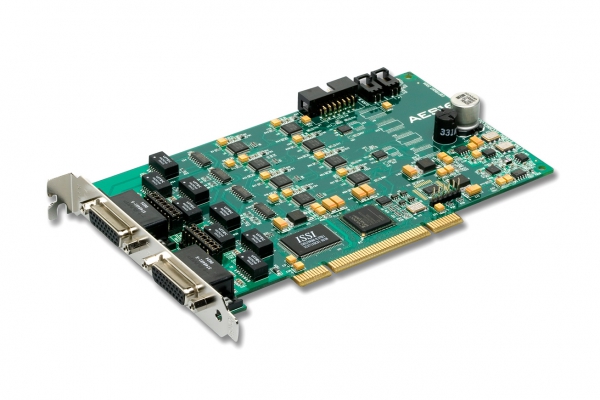

The AES/EBU PCI express card line, starting with 16 channels

Eight stereo inputs and eight stereo outputs (16 mono I/O), AES/EBU format, 24-bit, single wire and dual wire, transformer coupled

Optional sixteen channels of Sample Rate Conversion. Support for conversion ratios up to 16:1 with 144 dB dynamic range and -140dB THD+N.

Extensive on-board digital mixer
