The AES/EBU PCI express card line, starting with 16 channels

We have three models:

    • AES16e – Sixteen channel AES/EBU PCI Express Card



    • AES16e-SRC – AES16e with sixteen channels of sample rate conversion



    • AES16e-50 – AES16e with 32 channels of AES50 I/O plus sixteen channels of sample rate conversion



Key features

Eight stereo inputs and eight stereo outputs (16 mono I/O), AES/EBU format, 24-bit, single wire and dual wire, transformer coupled

Optional sixteen channels of Sample Rate Conversion. Support for conversion ratios up to 16:1 with 144 dB dynamic range and -140dB THD+N.

Extensive on-board digital mixer

Optional AES50 interface

All relevant settings, such as sample rate selection, sync source selection, channel routing, and buffer size are enabled, controlled and monitored from the host computer

Multi-channel support of 5.1 and 7.1 surround playback formats

Includes Lynx-exclusive SynchroLock™ sample clock generator for 3000:1 jitter rejection on external clock sources

Supports ASIO and WDM for Windows and CoreAudio for Mac OS X

The AES16e offers 16 channels of 192 kHz AES/EBU I/O. In addition to the base model, the AES16e-SRC includes sixteen channels of sample rate conversion and AES16e-50 will provide up to 32 additional digital inputs/outputs via AES50 technology.



The AES16e builds on the capabilities of our industry-standard AES16 with an updated feature set and the benefits of the PCI Express interface. The architecture and higher bandwidth of PCI Express reduces bottlenecks and overhead, which provides higher performance for computer-based high end audio.



The AES16e x1 PCI Express card provides 16 channels of 24-bit AES/EBU digital audio at a 192 kHz sample rate in both single-wire and dual-wire AES modes. Designed to integrate digital consoles, multi-channel A/D and D/A converters, hard disk recorders, digital audio workstations and other digital audio equipment, the AES16e is compatible with Windows and Macintosh operating systems.



The AES16e-SRC provides 16 channels of sample rate conversion, which may be switched on for any or all of the 8 digital inputs.



The third model, the AES16e-50, adds up to 32 digital I/O channels using AES50 technology, carrying the digital signal on standard CAT5 or CAT6 cable.

AES16e digital I/O XLR break-out cable

The optional AES16e digital I/O XLR break-out cable (model CBL-AES1604) is a 26-pin male D-sub to 4 male and 4 female XLR connectors on six-foot shielded twisted pair cabling

Buy the AES16e digital I/O XLR break-out cable HERE

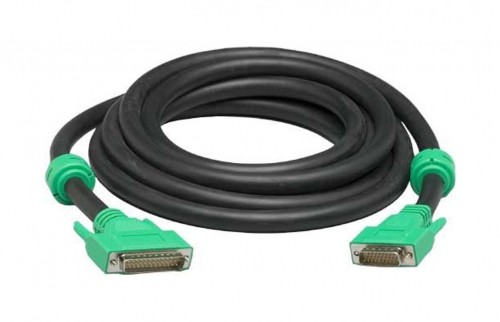

AES16e to Aurora cable

The optional AES16e to Aurora digital I/O cable (model CBL-AES1605) is a 26-pin male D-sub to 25-pin male D-sub for connection between the AES16e and Aurora converter

Buy the AES16e to Aurora digital I/O cable HERE
