Released: April 1, 2017

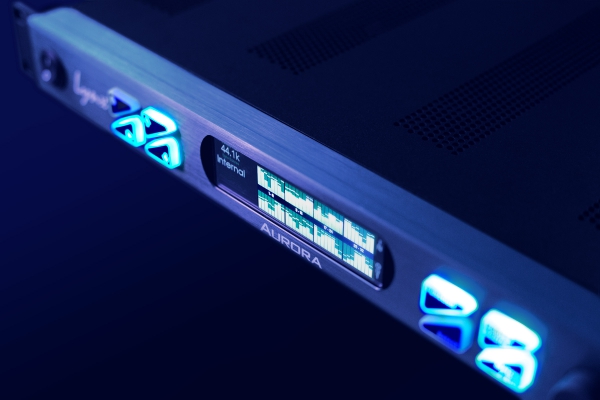

Aurora(n)
Analog Performance Specifications
All measurements made with Audio Precision SYS‐2722 Audio Analyzer

Line In (includes A/D Conversion)
THD+N: ‐113dB @1kHz, ‐1dBFS, 20kHz filter, +20dBu trim
Dynamic range: 119dB, A‐weighted, ‐60dBFS signal method
Frequency response: ±0.010dB, 20–20kHz
Crosstalk: ‐130dB maximum @ 1kHz, ‐1dBFS signal
Common mode rejection: greater than 80dB
Full‐scale trim settings: +6dBV, 20dBu

Line Out (includes D/A Conversion)
THD+N: ‐108dB @1kHz, ‐1dBFS, 20kHz filter, +20dBu trim
Dynamic range: 120dB, A‐weighted, ‐60dBFS signal method
Frequency response: ±0.025dB, 20–20kHz
Crosstalk: ‐130dB maximum @ 1kHz, ‐1dBFS signal
Full‐scale trim settings: +6dBV, 20dBu

Headphone Out (includes D/A Conversion)
THD+N: ‐107dB @1kHz, ‐1dBFS, 20kHz filter, volume at max
Dynamic range: 120dB, A‐weighted, ‐60dBFS signal method
Frequency response: ±0.025dB, 20–20kHz
Crosstalk: ‐120dB maximum @ 1kHz, ‐1dBFS signal
Output level: 18.4dBu maximum
