LynxTWO / L22 Beta Firmware Available
 Post Reply Post Reply Page  12>
Author
Message
  Topic Search Topic Search  Topic Options Topic Options
David A Hoatson View Drop Down
Admin Group
Admin Group
Avatar
Forum Administrator

Joined: October/01/2003
Location: Idaho
Points: 3754 		Post Options Post Options   Thanks (0) Thanks(0)   Quote David A Hoatson Quote  Post ReplyReply Direct Link To This Post Topic: LynxTWO / L22 Beta Firmware Available
    Posted: August/26/2012 at 3:16pm
For those of you trying to use your LynxTWO or L22 on a GigaByte motherboard, we have beta firmware available that should be a work-around for the ITE Super I/O chip issue.  The firmware is available from here:

L2Update25c

Please note that this updater only has new firmware for the LynxTWO and L22.  We expect to have AES16 firmware out in the near future.  Also note this updater will NOT work for the AES16e PCI Express card.

Please post your results back to this thread on the forum.


Edited by David A Hoatson - August/26/2012 at 3:18pm
Thank you,

David A. Hoatson
Lynx Studio Technology, Inc.
Co-founder, Chief Software Engineer
Back to Top
iijon View Drop Down
Caracal
Caracal


Joined: July/17/2012
Location: Russia
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote iijon Quote  Post ReplyReply Direct Link To This Post Posted: August/27/2012 at 5:15am
Setup says that my card is already up to date. I have L22. What is it?

Edited by iijon - August/27/2012 at 5:15am
Back to Top
David A Hoatson View Drop Down
Admin Group
Admin Group
Avatar
Forum Administrator

Joined: October/01/2003
Location: Idaho
Points: 3754 		Post Options Post Options   Thanks (0) Thanks(0)   Quote David A Hoatson Quote  Post ReplyReply Direct Link To This Post Posted: August/27/2012 at 8:19am
Sorry for the trouble.  Please re-download the file and try again.  It should work properly now.
Thank you,

David A. Hoatson
Lynx Studio Technology, Inc.
Co-founder, Chief Software Engineer
Back to Top
iijon View Drop Down
Caracal
Caracal


Joined: July/17/2012
Location: Russia
Points: 3 		Post Options Post Options   Thanks (0) Thanks(0)   Quote iijon Quote  Post ReplyReply Direct Link To This Post Posted: August/27/2012 at 8:52am
Its working! No more dropouts for 15 minutes already. WOW! Thanks a lot. Intel DZ77BH + Lynx L22, Windows 8 64.
Back to Top
patjero View Drop Down
Caracal
Caracal


Joined: July/25/2012
Location: France
Points: 7 		Post Options Post Options   Thanks (0) Thanks(0)   Quote patjero Quote  Post ReplyReply Direct Link To This Post Posted: August/27/2012 at 3:32pm
Hello David,

Thanks for all, it's fantastic, the lynx Two B is working fine with Windows 7 32 bits and motherboard Gigabyte P67A UD3P B3.

Thanks a lot !

Thumbs Up
Back to Top
Retropixel View Drop Down
Caracal
Caracal
Avatar

Joined: September/03/2012
Location: Buenos Aires
Points: 8 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Retropixel Quote  Post ReplyReply Direct Link To This Post Posted: September/03/2012 at 6:00am

Hello David,

Lynx Two-A working fine on Intel DG965SS Win 7 32Bit Nuendo 4 – PT 10 (Asio Lynx / firmware W33).

I upgrade the motherboard to Intel DZ68DB (same configuration) and dropout + freeze appears, not sound.

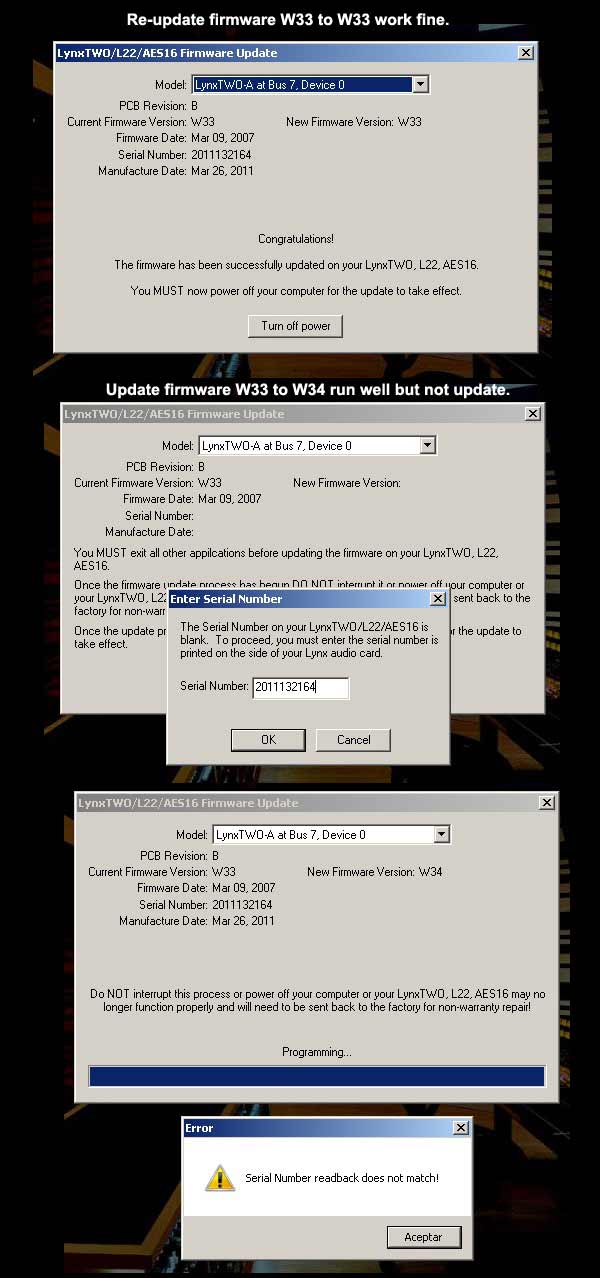

I tried updating this new firmware but when the process completes appears a legend that says: "Serial Number Readback Not Match!" and not update. Can you help me?

Thanks, Juan.
Back to Top
David A Hoatson View Drop Down
Admin Group
Admin Group
Avatar
Forum Administrator

Joined: October/01/2003
Location: Idaho
Points: 3754 		Post Options Post Options   Thanks (0) Thanks(0)   Quote David A Hoatson Quote  Post ReplyReply Direct Link To This Post Posted: September/03/2012 at 8:49am
Try updating it on the Intel DG965SS instead.
Thank you,

David A. Hoatson
Lynx Studio Technology, Inc.
Co-founder, Chief Software Engineer
Back to Top
Retropixel View Drop Down
Caracal
Caracal
Avatar

Joined: September/03/2012
Location: Buenos Aires
Points: 8 		Post Options Post Options   Thanks (1) Thanks(1)   Quote Retropixel Quote  Post ReplyReply Direct Link To This Post Posted: September/03/2012 at 12:10pm
Hi David, thank you for your quick response.

I tried rollback the motherboard to Intel DG965SS but this error persist.


Thank you!
Juan.
Back to Top
Retropixel View Drop Down
Caracal
Caracal
Avatar

Joined: September/03/2012
Location: Buenos Aires
Points: 8 		Post Options Post Options   Thanks (0) Thanks(0)   Quote Retropixel Quote  Post ReplyReply Direct Link To This Post Posted: September/15/2012 at 7:01am

I was testing a week and definitely does not work. The error before described does not allow update the firmware (in both motherboards)

What is the lastest Intel motherboard with i3 or i5 processor tested for Lynx two?

Thanks, Juan.
Back to Top
PaulTech View Drop Down
Admin Group
Admin Group
Avatar

Joined: August/13/2004
Location: United States
Points: 4148 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulTech Quote  Post ReplyReply Direct Link To This Post Posted: September/19/2012 at 5:08pm
Juan,
If neither of your boards allow the update, I can arrange to have your firmware updated here. Just send address, phone number and serial number to support@lynxstudio.com, referencing this thread.
Paul Erlandson
Lynx Studio Technology
Support
714-545-4700 x 206
Lynx Support and Updates on Facebook!
Back to Top
valer_valer View Drop Down
Caracal
Caracal


Joined: November/19/2009
Location: Israel
Points: 14 		Post Options Post Options   Thanks (0) Thanks(0)   Quote valer_valer Quote  Post ReplyReply Direct Link To This Post Posted: November/17/2012 at 9:15am
I updated W34 to my LynxTwo-A. After a long working time (2-3 hours), the computer freezes.
I tried restore the W33 but I get a message "Unable to continue", "Firmware is already up to date ".
Please help ...


Edited by valer_valer - November/17/2012 at 9:16am
Back to Top
David A Hoatson View Drop Down
Admin Group
Admin Group
Avatar
Forum Administrator

Joined: October/01/2003
Location: Idaho
Points: 3754 		Post Options Post Options   Thanks (0) Thanks(0)   Quote David A Hoatson Quote  Post ReplyReply Direct Link To This Post Posted: November/17/2012 at 7:19pm
It is highly unlikely that the LynxTWO-A firmware is to blame for the computer freezing, especially if it worked for 2-3 hours.

There is a way to downgrade the firmware.  Please send an email to support@lynxstudio.com and we can give you instructions.
Thank you,

David A. Hoatson
Lynx Studio Technology, Inc.
Co-founder, Chief Software Engineer
Back to Top
kepke View Drop Down
Caracal
Caracal


Joined: December/24/2011
Location: Israel
Points: 2 		Post Options Post Options   Thanks (0) Thanks(0)   Quote kepke Quote  Post ReplyReply Direct Link To This Post Posted: November/26/2012 at 12:47am
Originally posted by valer_valer valer_valer wrote:

I updated W34 to my LynxTwo-A. After a long working time (2-3 hours), the computer freezes.
I tried restore the W33 but I get a message "Unable to continue", "Firmware is already up to date ".
Please help ...
I'm having the exact same problem, either this or the card stops working and when i look at the mixer i see the attached picture.
Back to Top
PaulTech View Drop Down
Admin Group
Admin Group
Avatar

Joined: August/13/2004
Location: United States
Points: 4148 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulTech Quote  Post ReplyReply Direct Link To This Post Posted: November/28/2012 at 5:41pm
kepke,
That definitely looks like a problem with communication with the hardware. Sometimes when one of the PCI fingers is blocked or the card is not seated all the way in the slot you can get behavior like this. Try re-seating the card, or putting it into a different PCI slot.

What motherboard is this? You can send an email to support@lynxstudio.com and request our beta LynxTWO firmware. There's a small chance it may help in this case.
Paul Erlandson
Lynx Studio Technology
Support
714-545-4700 x 206
Lynx Support and Updates on Facebook!
Back to Top
OlavK View Drop Down
Caracal
Caracal
Avatar

Joined: December/04/2009
Location: Norway
Points: 36 		Post Options Post Options   Thanks (0) Thanks(0)   Quote OlavK Quote  Post ReplyReply Direct Link To This Post Posted: December/03/2012 at 4:21am
I have the exact same problem (L2B, ASUS P8Z68 deluxe mobo). I am not 100% sure if it is the beta firmware that causes Windows to freeze (invariably after some 9 to 14 hours idle time, sometimes also on heavy load), but the problem started just after upgrading the firmware. When running Windows in Safe Mode, the computer is stable.

I have tried both thePCI slots, same results.

I will make double sure the card is fully inserted.

Is it possible to rollback to the previous firmware version?

At least I would like to do this as part of troubleshooting my computer. Or is there some other things to be tried before doing so?
Back to Top
PaulTech View Drop Down
Admin Group
Admin Group
Avatar

Joined: August/13/2004
Location: United States
Points: 4148 		Post Options Post Options   Thanks (0) Thanks(0)   Quote PaulTech Quote  Post ReplyReply Direct Link To This Post Posted: December/04/2012 at 5:30pm
Send an email to support@lynxstudio.com, and I can give you instructions to roll the firmware back.
Paul Erlandson
Lynx Studio Technology
Support
714-545-4700 x 206
Lynx Support and Updates on Facebook!
Back to Top
OlavK View Drop Down
Caracal
Caracal
Avatar

Joined: December/04/2009
Location: Norway
Points: 36 		Post Options Post Options   Thanks (0) Thanks(0)   Quote OlavK Quote  Post ReplyReply Direct Link To This Post Posted: December/06/2012 at 12:49pm
Originally posted by PaulTech PaulTech wrote:

Send an email to support@lynxstudio.com, and I can give you instructions to roll the firmware back.

The firmware rollback did the trick, my computer is now stable again.

And as stated in an earlier post, disabling C1E, C3 and C6 reporting in BIOS made 96kHz playback possible again.

I am a happy guy again, thanks for very quick response, Paul!

Clap
Back to Top
kepke View Drop Down
Caracal
Caracal


Joined: December/24/2011
Location: Israel
Points: 2 		Post Options Post Options   Thanks (0) Thanks(0)   Quote kepke Quote  Post ReplyReply Direct Link To This Post Posted: December/11/2012 at 10:04pm
Originally posted by PaulTech PaulTech wrote:

kepke,
That definitely looks like a problem with communication with the hardware. Sometimes when one of the PCI fingers is blocked or the card is not seated all the way in the slot you can get behavior like this. Try re-seating the card, or putting it into a different PCI slot.

What motherboard is this? You can send an email to support@lynxstudio.com and request our beta LynxTWO firmware. There's a small chance it may help in this case.
I am pretty sure it's not a hardware communication problem - I made sure the card is inserted all the way in and all the PCI fingers are clean, moreover, I tried the card on two different boards ( Asus Sabertooth X79 and Asus P8Q77-M) and several slots within these boards with the exact same result. the problem started right after upgrading.
I will try downgrading the Firmware and see if it helps.


Edited by kepke - December/11/2012 at 10:07pm
Back to Top
